Looking good, by this time tomorrow I should have a prototype for software development.
Version 3 of my project
I plugged it into an arduino and it works.
Couple new things about this version, I kind of want to stick with this layout, also it adds an IR on board freeing the need to use an aux port, its modular in that I can add a Nano, or Uno a 16×4 LCD or a 20×4 LCD.
The sketch allows for use with an ethernet shield.
Finally renamed it from cubical communicator to senseandshow.

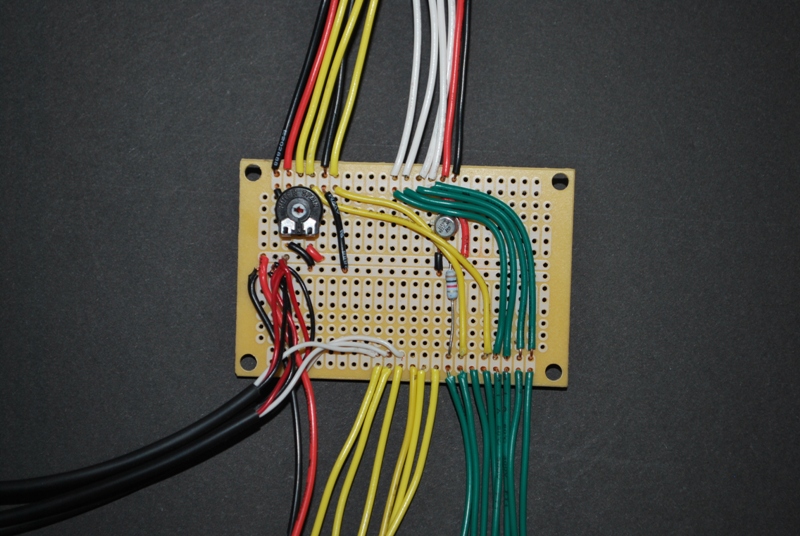

Here is a close up of an incomplete part, I am calling this the interconnect assembly

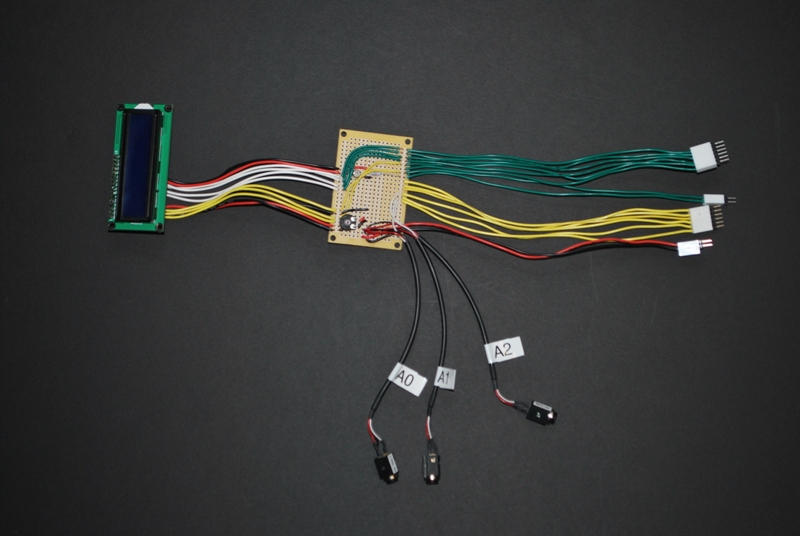

Interconnect Assembly.
It passed my tests of the 3 auxiliary ports and most importantly the LCD. We’ll see how it works tomorrow after I add the 3 LEDs and the IR sensor.
